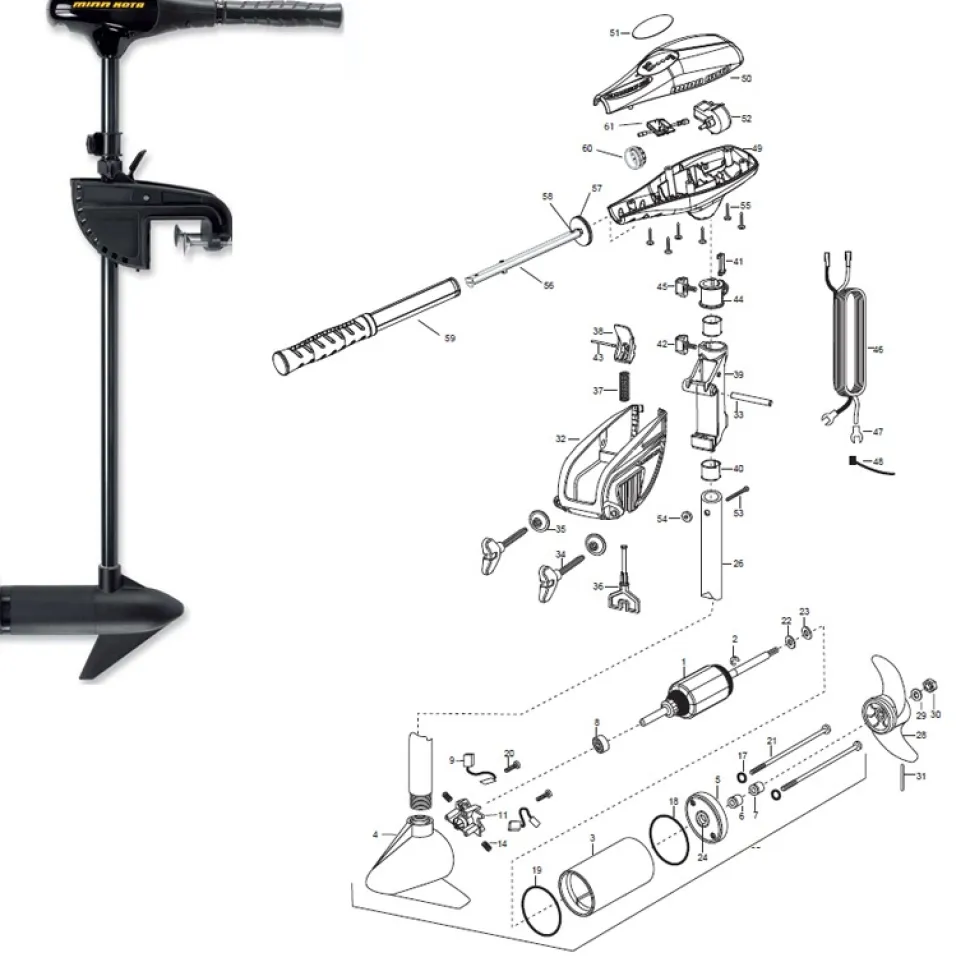

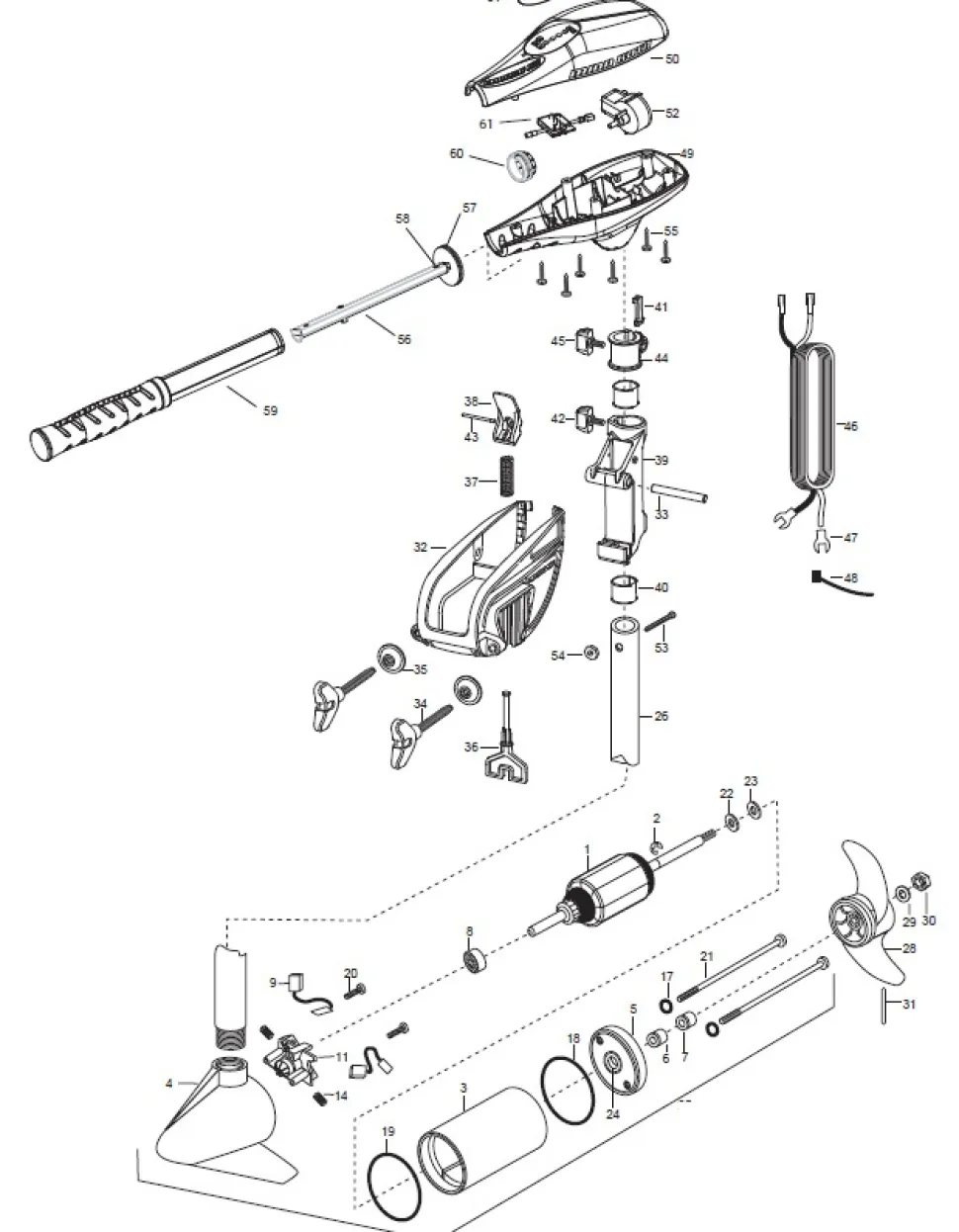

Pièces détachées pour moteur Endura 34 C2

1 2-100-285 ARMATURE ASSEMBLY 12v 3.25
2 788-015 RETAINING RING
3 2-200-188 HOUSING ASSEMBLY CENTER 3.25 TXT
4 2-300-142 BRUSH END HOUSING ASSEMBLY 3.25 SP.CO
5 2-400-187 PLAIN END HOUSING ASSEMBLY 3.25
6 880-003 SEAL
7 880-006 SEAL W/SHIELD
8 140-010 BALL BEARING
9 188-052 BRUSH ASSEMBLY [2.EA]11 738-030 BRUSH PLATE W/HOLDER 3.25
14 975-032 SPRING-COMPRESSION [2.EA]17 701-007 O-RING- THRU BOLT [2.EA]18 701-039 O-RING MK406460
19 701-041 O-RING
20 830-001 SCREW- SELF THREAD 8-32X1.7 [2.EA]21 830-062 THRU BOLT 8-32X8.0 [2.EA]22 990-067 WASHER- STEEL THRUST
23 990-070 WASHER- NYLATRON [2.EA]24 144-049 FLANGE BEARING (SERVICE ONLY)
25 2069275 MOTOR ASSEMBLY 12 V 3.25 5SPC TXT
26 2032045 TUBE, COMPOSITE 30”
28 1865002  Hélice Minn Kota MKP-2
29 2151726 WASHER- 5/16 STD SS
30 2053101 NUT-PROP NYLOCK (MED) SS
31 2092600 PIN-DRIVE
*32 2061910 BRACKET
33 2060510 PIN-HINGE
*34 2061300 SCREW-CLAM [2.EA]*35 2011710 WASHER-CLAMP SCREW [2.EA]36 2063605 T-BAR, PLASTIC
37 2062706 SPRING- (T-BAR)
38 2067201 LEVER-TILT BLACK
39 2061810 HINGES-PLASTIC
40 2037301 BUSHING-HINGE [2.EA]41 2062800 TENSION BLOCK-SNAP IN
42 2011385 SCREW, TENSION/KNOB
43 2060515 PIN, TILT LEVER
44 2061520 COLLAR-DEPTH
45 2011365 SCREW-COLLAR/NEW KNOB
46 2020630 LEADWIRE (14 GA) FLAG/PIGGYBACK
47 2020703 SPADE TERMINAL 14GA HD [2.EA]48 2026300 TIE WRAP
49 2062515 CONTROL BOX
50 2060215 CONTROL BOX COVER
51 2065720 DECAL COVER ENDURA C2 30 BATTERY METER
52 2064028 SWITCH-FWD/REV 5 SP
53 2033401 SCREW-10-24 X 1-3/4
54 2013110 NUT-10-24 HEX
55 2012100 SCREW-8-18 X 5/8 [6.EA]56 2990919 INNER HANDLE ASSEMBLY
57 2060405 PIVOT, HANDLE
58 2012102 SCREW
59 2990928 OUTER HANDLE ASSEMBLY
60 2060009 FRONT BEARING
61 2074070 BATTERY METER 12V
