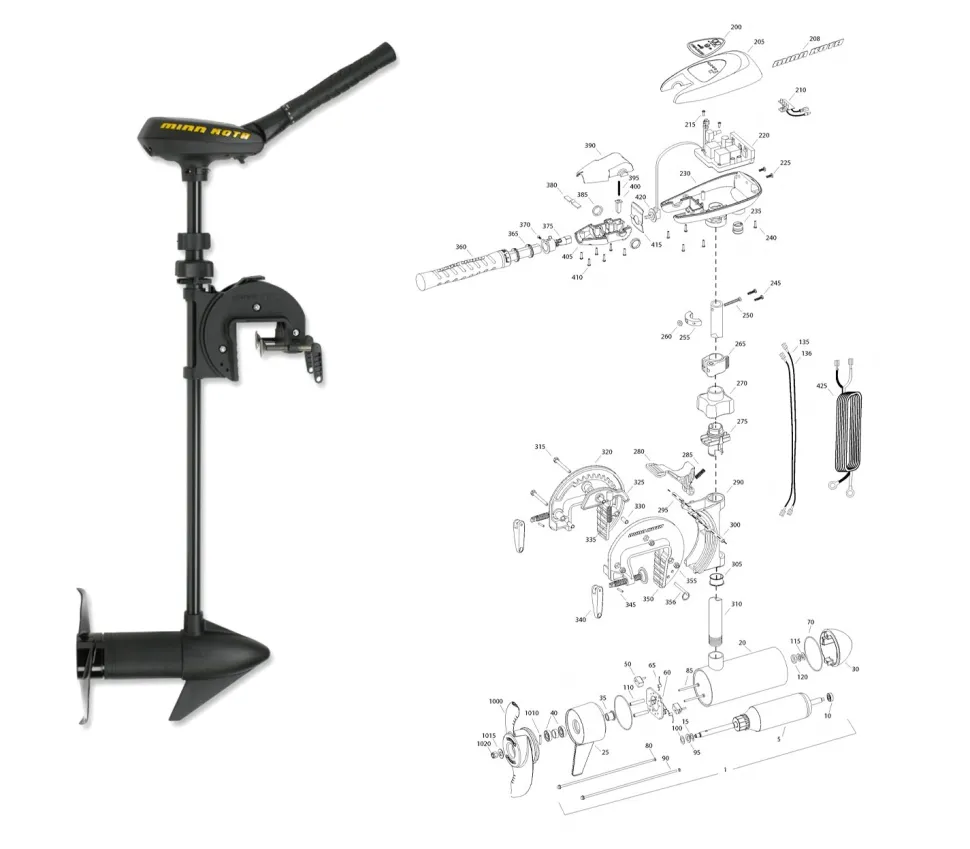

Pièces détachées pour moteur Traxxis 80 Maximizer

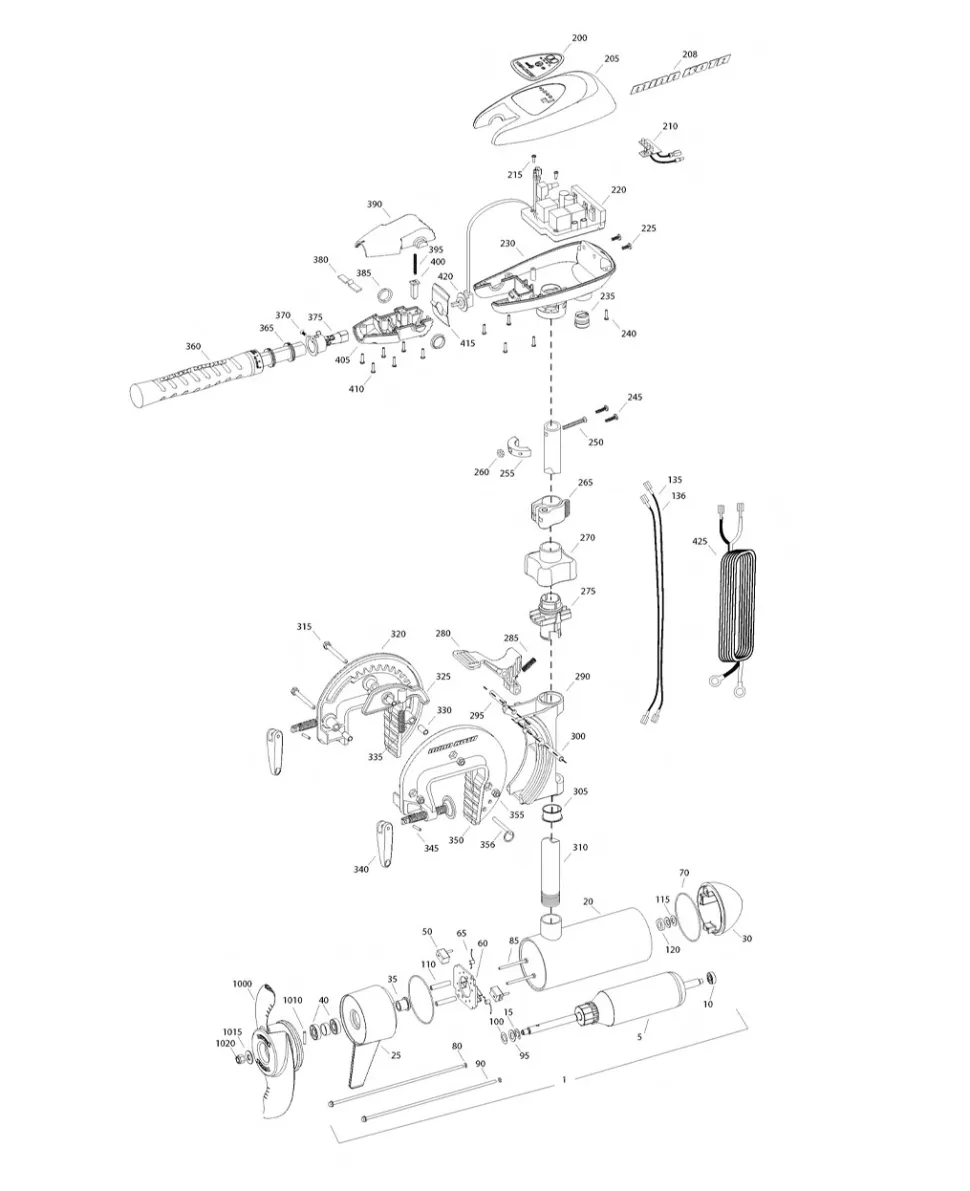

Vous trouverez ci-dessous les concordances entre les numéros des pièces sur le schéma et les références Minn Kota :

1 :  2316216 24V Motor 36” FW
5:  2-100-214 Armature assembly
10:  140-010 Bearing
15:  788-040 Retaining ring
20:  2-200-160 Center housing assemby
25:  2-300-160 Brush end housing assembly
30:  421-276 Plain end housing assembly
35:  144-017 Flange bearing
40:  880-025 Seal
50:  188-094 Brush
60:  9-738-004 Brush plate assembly
65:  975-041 Brush spring
70:  701-043 Gasket
80:  701-009 O-ring, thru-bolt
85:  830-027 Screw, 8-32
90:  830-094 Thru-bolt
95:  990-067 Washer, steel
100:  990-070 Washer, nylatron
135:  640-004 Leadwire, black
136:  640-105 Leadwire, red
200:  2065668 Decal, c-box cover
205:  2060295 C-box cover
208:  2325665 Decal – MinnKota
210:  2074071 Battery meter, 12v FW
215:  3043427 Screw, #8 x 7/8 SS
220:  2184007 Control board, 12v
225:  2303434 Screw, #8-30 x 5/8 SS
230:  2062501 Control box, VARS, FW
235:  2062905 Strain relief
240:  2303412 Screw, #6 x 5/8 SS
245:  2263434 Screw, #8 x 1 SS
250:  2383407 Screw, #10-24 x 2 SS
255:  2061515 Collar, c-box
260:  2383124 Nut, 10-24, nylock, SS
265:  2991521 Cam lock/depth collar assy
270:  2060100 Knob, steering tension, soft
275:  2068400 Collet
280:  2064200 Lock arm
285:  2062701 Spring, lock arm
290:  2061821 Hinge
295:  2062602 Pin, lock, Zinc
300:  2062602 Pin, lock, Zinc
305:  2037301 Bushing, hinge
310:  2032053 Tube 36”
315:  2063500 Bolt 1/4-20 x 2 3/8”, Zinc
320:  2771941 Bracket, right, FW
325:  2067905 Cam deactivator
330:  2067306 Bushing, dowel 1/4 x 1/2
335:  2062700 Spring, cam deactivator
340: 2050925 Handle, clamp
345: 2052605 Roll pin
350: 2771947 Bracket, left, FW
355:  2263104 Nut, 1/4-20, nylock, Zinc
356:  2062604 Pin, stop
360:  2990456 Grip/handle assy, VARS [360-375]
365:  2060015 Bearing, handle
370:  2063405 Screw, #6 PFH SS
375:  2884092 Yoke / spider assy, VARS
380:  2302742 Spring, detent, off
385:  2060005 Bearing, handle pivot
390:  2060900 Handle pivot, top
395:  2302745 Spring, release button
400:  2063700 Button, release
405:  2060905 Handle pivot, bottom
410:  2303412 Screw, #6 x 5/8 SS
415:  2062715 Spring, handle pivot
420:  2061700 Washer, pot holder
425:  2992523 Leadwire assy, includes [235]1000:  2091160 Propeller WW2
1010:  2092600 Drive pin, small
1015:  2151726 Washer, prop, small
1020:  2053101 Nut, nylock, prop, small
